Transaction QR
Display a QR code for user to scan and pay
Transaction QR Sequence Diagram
Example of Create Transaction QR
Step 1 : Create a QR Code
Get the QR Code URL qrCodeUrl from the response endpoint
Example of QR Code URL: https://dev-rm-api.ap.ngrok.io/payment/unified?code=a669adc3b06fe5cef977cc762f40ce8c
Step 2 : User Fill Amount / PreFill Amount

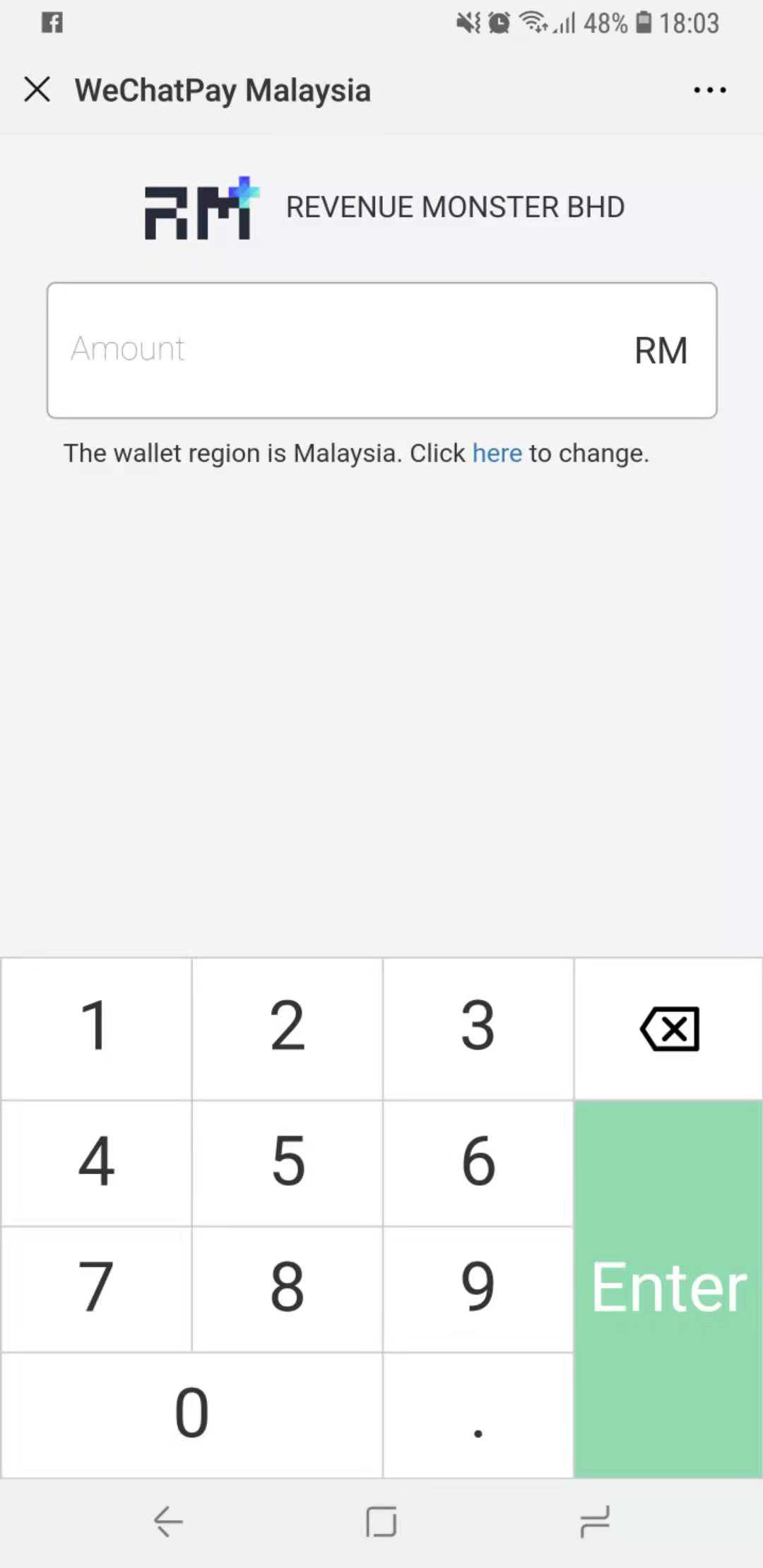

If "isPreFillAmount": false, user will be prompted to key-in amount for payment.

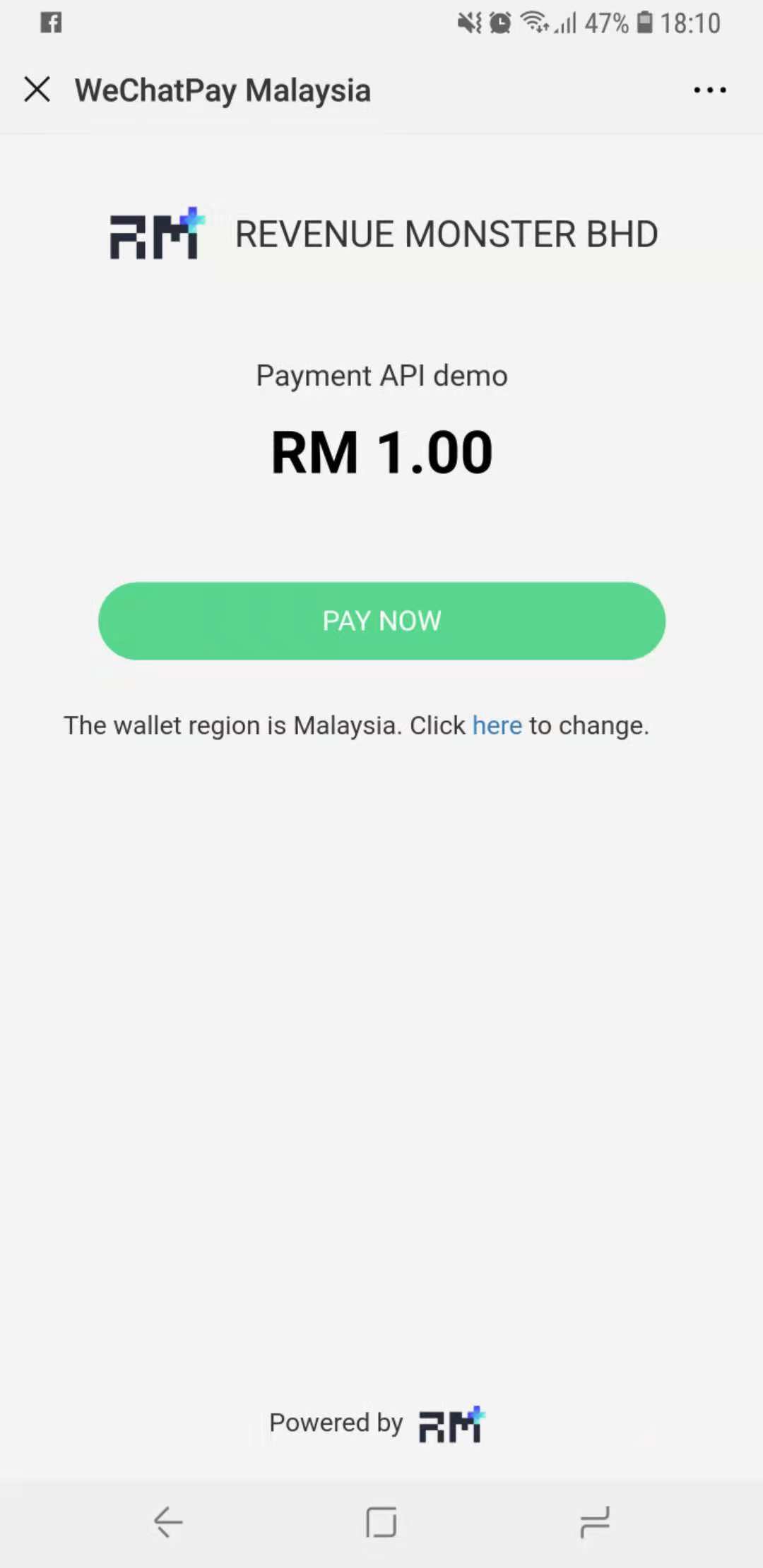

If "isPreFillAmount": true, user will be directly prompted for payment.

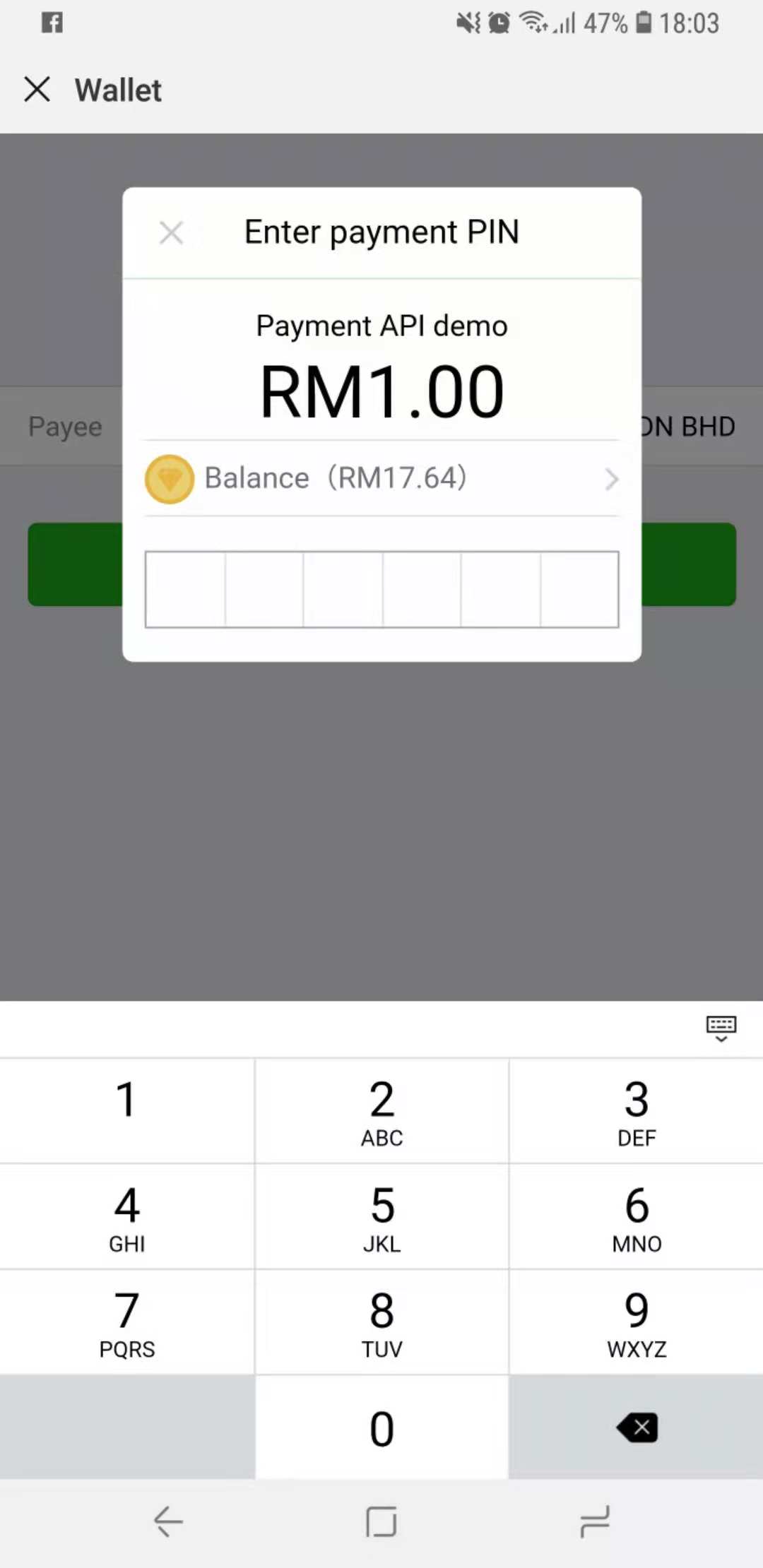

Step 3 : Insert Pin

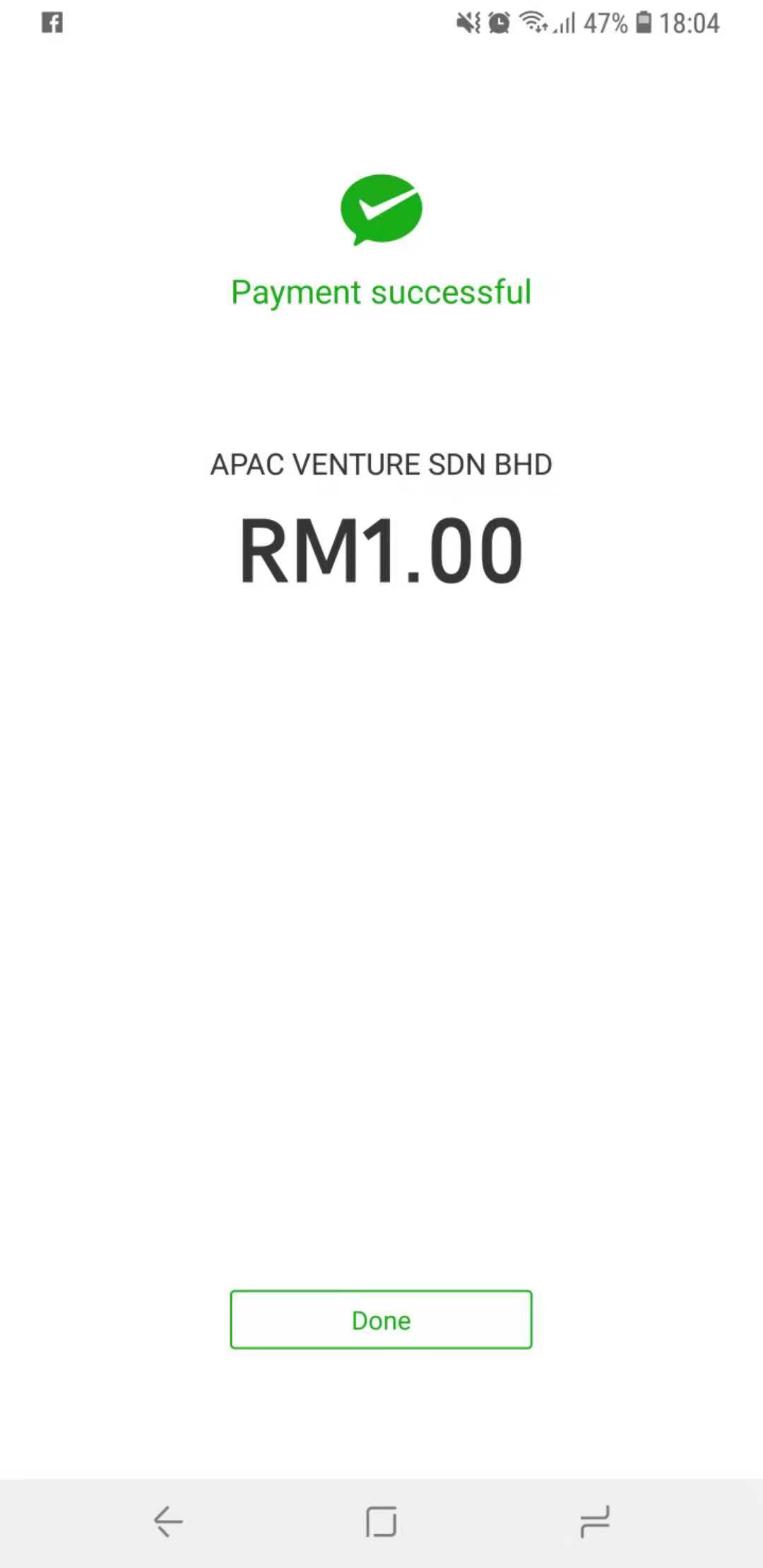

Step 4 : User will receive a payment status notification
Step 5 : Redirect to Merchant Page
After payment is complete, the user will be redirected to a URL link set at redirectUrl.
Step 6 : Payment History
Users can view their transaction history in their own wallet application
Step 7 : Merchants can view their transaction record in Merchant Portal
After payment is complete, merchants can view their transaction in Merchant Portal.
Method : POST
URL : https://open.revenuemonster.my/v3/payment/transaction/qrcode
Sandbox URL : https://sb-open.revenuemonster.my/v3/payment/transaction/qrcode
To create Static/Dynamic QR code for user scanning merchant's display QR.
Request Parameters
Parameter | Type | Required | Description | Example |
---|---|---|---|---|
amount | Uint | Yes | Amount of order in cent. Only required when "isPrefillAmount" = true. (min RM 0.10 or amount: 10) | 100 |
currencyType | String | Yes | Currency notation (currently only support MYR ) | "MYR" |
method | []String | No | RM currently supported method | ["WECHATPAY_CN","WECHATPAY_MY", "BOOST_MY","ALIPAY_CN", "PRESTO_MY" ] |
expiry | Object | No | Object of expiry | (Refer to explanation below) |
order | Object | Yes | Object of order | (Refer to explanation below) |
redirectUrl | String | No | URL to redirect after payment is made. Default is "". | "https://www.apple.com/my/iphone/" |
type | String | Yes | "STATIC" (for permanent use) or "DYNAMIC" (for one-time use) | "STATIC" |
storeId | String | Yes | ID of the store to create QR code | "10946114768247530" |
isPreFillAmount | Bool | No | To indicate QR code has pre-fill amount. Default is false. (i.e. Amount will be shown directly on user's wallet without keying-in) | true |
Expiry object (expiry):
Parameter | Type | Required | Description | Example |
---|---|---|---|---|
type | String | Yes | "DYNAMIC" (days from now), "FIX" (specific fixed date) or "PERMANENT" (never expire) | "PERMANENT" |
day | Uint | No | Only required by "DYNAMIC" expiry type. To indicate number of days from now until expiry. | 3 |
expiredAt | DateTime | No | Only required by "FIXED". To indicate specific expiry date. | "2020-10-07T17:44:26.679908+08:00" |
Order object (order):
Parameter | Type | Required | Description | Example |
---|---|---|---|---|
detail | String | Yes | Order details, max: 600 | "1 x iPhone X; 2 x SAMSUNG S8" |
title | String | Yes | Order title, max: 32 | "Sales" |
additionalData | String | Yes | Order additional data, max: 128 | "Sales for customer xxx at branch xxx." |
Example Request
curl --location --request POST "https://sb-open.revenuemonster.my/v3/payment/transaction/qrcode" \
--header "Content-Type: application/json" \
--header "Authorization: Bearer eyJhbGciOiJSUzI1NiIsImtpZCI6IjIwMTgtMDMtMTMiLCJ0eXAiOiJKV1QifQ.eyJhdWQiOlsiKiJdLCJleHAiOjE1MjE2MjkyNTYsImlhdCI6MTUyMTYyMjA1NywiaXNzIjoiaHR0cHM6Ly9zYi1vYXV0aC5yZXZlbnVlbW9uc3Rlci5teSIsImp0aSI6IkVod0tFRTlCZFhSb1FXTmpaWE56Vkc5clpXNFF5cmYza3EzTDY4QnoiLCJuYmYiOjE1MjE2MjIwNTcsInN1YiI6IkVoUUtDRTFsY21Ob1lXNTBFSlhWemQzd3JhcVRPUklRQ2dSVmMyVnlFSXlKcUl6dnlNUFZjUSJ9.dJknY9MZHLNrKx1p7gZxS0_oA3uXLWplDU1r1dpwxIbmdB6yw4tQBTXKlWArDfKLlBDn6v22_gT5Px7sdCMj7e5M9eRoJoMnoPnslgYpmJJ5kjqAbKU7dUxKb1OzFLrvmtSK9r-FRLVtMFHioWYpwgSvSPBgZ6lAYkUyDzH7aKadFYtQcBuJR0hlq2CXtP0mzbHOeu2q6giONf3E5-XqS8lLRtuHPAbJ7_YFwo0Oe2zc6h05IOocmx_NvBVPfDBnuygTU063h70Q987MYeGDV_Os4N6N_I4b-GoHprEPtmntB1RJPrFrY28hvvoUfDHXHZVXT1GlrsozrkWV4EjbTw" \
--header "X-Signature: sha256 pLZz2vnRYHKPUd28gz+f3gIPimH+dHu1xNZqBqlNVQFOdDY1UPpA8S9lIHb4vUhQlEqLS/jJp4zETKA0q4qIlA==" \
--header "X-Nonce-Str: mpnbwsaizkwaykemxfolmmhvyzvrgnnh" \
--header "X-Timestamp: 15347569119413" \
--data "{\"amount\":100,\"currencyType\":\"MYR\",\"expiry\":{\"type\":\"PERMANENT\"},\"isPreFillAmount\":true,\"method\": [\"WECHATPAY\"],\"order\":{\"detail\":\"detail\",\"title\":\"title\"},\"redirectUrl\":\"https://www.baidu.com/\",\"storeId\":\"10946114768247530\",\"type\":\"DYNAMIC\"}"
Response Parameters
Parameter | Type | Description | Example |
---|---|---|---|
item | Object | Transaction object | (Refer to explanation below) |
code | String | Successfully call this endpoint. If fail, will return error code object (Refer Appendix 1: Error Codes ) | "SUCCESS" |
Transaction object (item):
Parameter | Type | Description | Example |
---|---|---|---|
store | Object | Store object | (Refer to explanation below) |
type | String | "DYNAMIC" (days from now), "FIXED" (specific fixed date) or "PERMANENT" (never expire) | "PERMANENT" |
isPreFillAmount | Bool | To indicate QR code has pre-fill amount | true |
currencyType | String | Currency notation | "MYR" |
amount | Uint | Amount of order in cent. Only required when "isPrefillAmount" = true. | 100 |
platform | String | Currently only support "OPEN_API" | "OPEN_API" |
method | []String | RM currently supported method | ["WECHATPAY_CN","WECHATPAY_MY", "BOOST_MY","ALIPAY_CN", "PRESTO_MY"] |
expiry | Object | Object of expiry | (Refer to explanation above) |
code | String | Embedded code in QR | "c8ff3df0605a5f20cd6476661072eade" |
status | String | "VALID" (always valid for static QR) or "REDEEMED" (only applicable to dynamic QR) | "VALID" |
qrCodeUrl | String | Embedded URL in QR | "https://dev-rm-api.ap.ngrok.io/payment/unified?code=c8ff3df0605a5f20cd6476661072eade" |
redirectUrl | String | Redirect URL after QR payment is made | "https://www.apple.com/my/iphone/" |
order | Object | Order object | (Refer to explanation below) |
createdAt | DateTime | Creation date time of transaction | "2018-03-21T06:41:22Z" |
updatedAt | DateTime | Last update date time of transaction | "2018-03-21T06:41:22Z" |
Store object (store):
Parameter | Type | Description | Example |
---|---|---|---|
id | String | Store ID | "6170506694335521334" |
name | String | Store Name | "REVENUE MONSTER" |
addressLine1 | String | Store Address 1 | "B-5-30, 5th Floor, Block Bougainvillea," |
addressLine2 | String | Store Address 2 | "PJU 6A, Lebuhraya SPRINT, 10 Boulevard," |
postCode | String | Postcode of store | "47400" |
city | String | City of store | "Petaling Jaya" |
state | String | State of store | "Selangor" |
country | String | Country of store | "Malaysia" |
countryCode | String | Country code of store contact number | "60" |
phoneNumber | String | Phone number of store | "377334080" |
geoLocation | Object of [Float] | Geo Location (latitude and longtitude) of store | {"latitude": 3.1349857, "longitude": 101.6136659 } |
status | String | Current status of store | "ACTIVE" |
createdAt | DateTime | Creation date time of store | "2018-02-12T08:53:13Z" |
updatedAt | DateTime | Last update date time of store | "2018-02-12T08:53:13Z" |
Expiry object (expiry):
Parameter | Type | Description | Example |
---|---|---|---|
type | String | "DYNAMIC" (days from now), "FIX" (specific fixed date) or "PERMANENT" (never expire) | "PERMANENT" |
day | Uint | Only required by "DYNAMIC" expiry type. To indicate number of days from now until expiry. | 3 |
expiredAt | DateTime | Only required by "FIXED". To indicate specific expiry date. | "2020-10-07T17:44:26.679908+08:00" |
Order object (order):
Parameter | Type | Description | Example |
---|---|---|---|
details | String | Order details, max: 600 | "1 x iPhone X; 2 x SAMSUNG S8" |
title | String | Order title, max: 32 | "Sales" |
additionalData | String | Order additional data, max: 128 | "Sales for customer xxx at branch xxx." |
Example Response
{
"item": {
"store": {
"id": "10946114768247530",
"name": "One Utama",
"addressLine1": "ANYTHING",
"addressLine2": "",
"postCode": "48484",
"city": "KUALA LUMPUR",
"state": "W.P. KUALA LUMPUR",
"country": "MALAYSIA",
"countryCode": "60",
"phoneNumber": "12312341234",
"geoLocation": {
"latitude": 0,
"longitude": 0
},
"status": "ACTIVE",
"createdAt": "2018-06-03T08:53:48Z",
"updatedAt": "2018-06-03T08:53:48Z"
},
"type": "DYNAMIC",
"isPreFillAmount": true,
"currencyType": "MYR",
"amount": 100,
"platform": "OPEN_API",
"method": ["WECHATPAY"],
"expiry": {
"type": "PERMANENT",
"day": 0,
"expiredAt": "2050-12-31T23:59:59Z"
},
"code": "237fff27513b29ddd364e595d6c2eaf2",
"status": "VALID",
"qrCodeUrl": "https://sb-api.revenuemonster.my/payment/unified?code=237fff27513b29ddd364e595d6c2eaf2",
"redirectUrl": "https://www.baidu.com/",
"order": {
"title": "title",
"detail": "detail"
},
"createdAt": "2018-08-20T09:27:47.68849666Z",
"updatedAt": "2018-08-20T09:27:47.688496777Z"
},
"code": "SUCCESS"
}
If you don't receive any response please ingestion Query Status By Order ID
